Indirect Level Instruments and Switches

Magnetic Level Indicator

Magnetic Level Indicators

Application: Liquefied Gases like Ammonia, Chlorine, LPG, Propane, C4-Cut, AHF, EO, Ethylene, Pesticides, Petrochemicals, Hot Oils, Acids, Alkalies, Brine, Water, Interface etc.

  • Operation: Float guided in the tank or in external chamber, moves with level. Magnetically coupled Indicap follower or bi-colored Rotocyls, indicate level externally.

  • Features: MOC: CS, SS, PP, PVDF Operational Pressures: Abs. Vacuum to 30 Bar, Range: 300-6000 mm, Operational Temperature: -50 degree to 300 degree.

  • Highlights: Rugged Metal Chamber, Rotocyl/Indicap Follower Indication, Magnatrans Reed Resistor Transmitter - with 4-20mA - IS 5780 - Gr IIC&/or HART digital intrinsically safe proportionate output to Ex ia IITC T4. Magnalatch - step less Adjustable Limit Switches.


Immertrans - Displacer Transmitter

Application: Liquefied Gases like Ammonia, Chlorine, LPG, Propane, C4-Cut, AHF, EO, Ethylene, Pesticides, Petrochemicals, Hot Oils, Fatty Acids, Acids, Alkalies, Brine, Water, Interface etc.

  • Operation: Change in liquid level causes proportionate loss of weight of Displacer. The resulting small movement on its tip, is converted into rotation by an external magnetic fork, giving 4-20 mA output.

  • Options: 1. LCD or Mechanical Display 2. HART Com.

  • MOC:  CS, SS, PTFE

  • Operational Pressure: Abs. Vacuum to 100 Bar.

  • Range: Upto 6 Mtrs.

  • Operational Temperatures: -50 Degree to 300 Degrees.

  • Highlights: Rugged, power independent mechanical display. Unaffected by vapor, pressure, temperature, or dielectric. Intrinsically safe to IS-5780-Gr. IIC, EEx ia IICT4

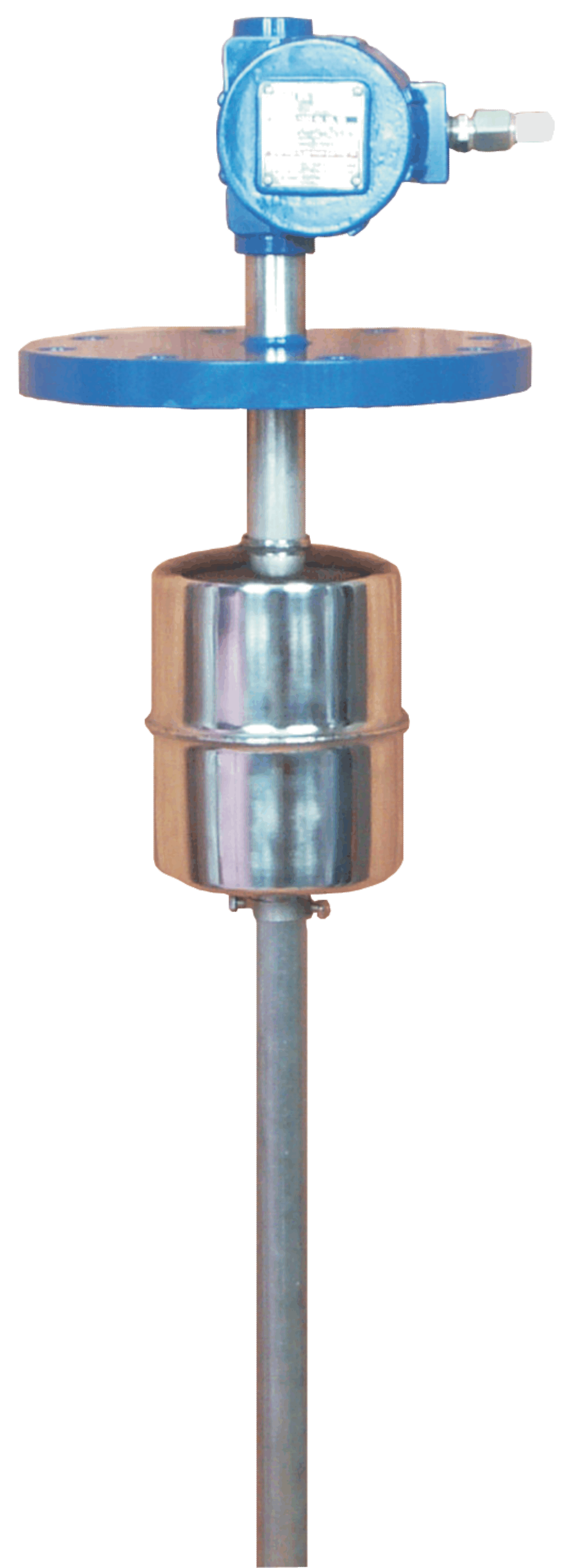

Insertrans & Inserstat

Applications: Application: Liquefied Gases like LPG, C4-Cut, AHF, EO, Ethylene, Pesticides, Petrochemicals, Acids, Water, Interface etc.

  • Features: MOC: SS, PP, PVDF Range: 0-4 Mtrs. Operational Pressure: Absolute Vacuum to 30 Bar. Operational Temperature: -50 degree to120 degree celius.

  • Insertans: A doughnut shaped magnetic float moves with level over a blind guide pipe. Resistance of the PCB inside the pipe, changes magnetically, proportionate to float position. This is converted into 4-20 mA and HART Com. by transmitter. LCD Display is optional. Intrinsic safety to IS - 5780 Gr. IIC

  • Inserstat: It has two stepless adjustable switches, 1.5A 240 VAC, Mounted on a graduated PCB. They change over magnetically and keep latched as the float passes over them and returns.

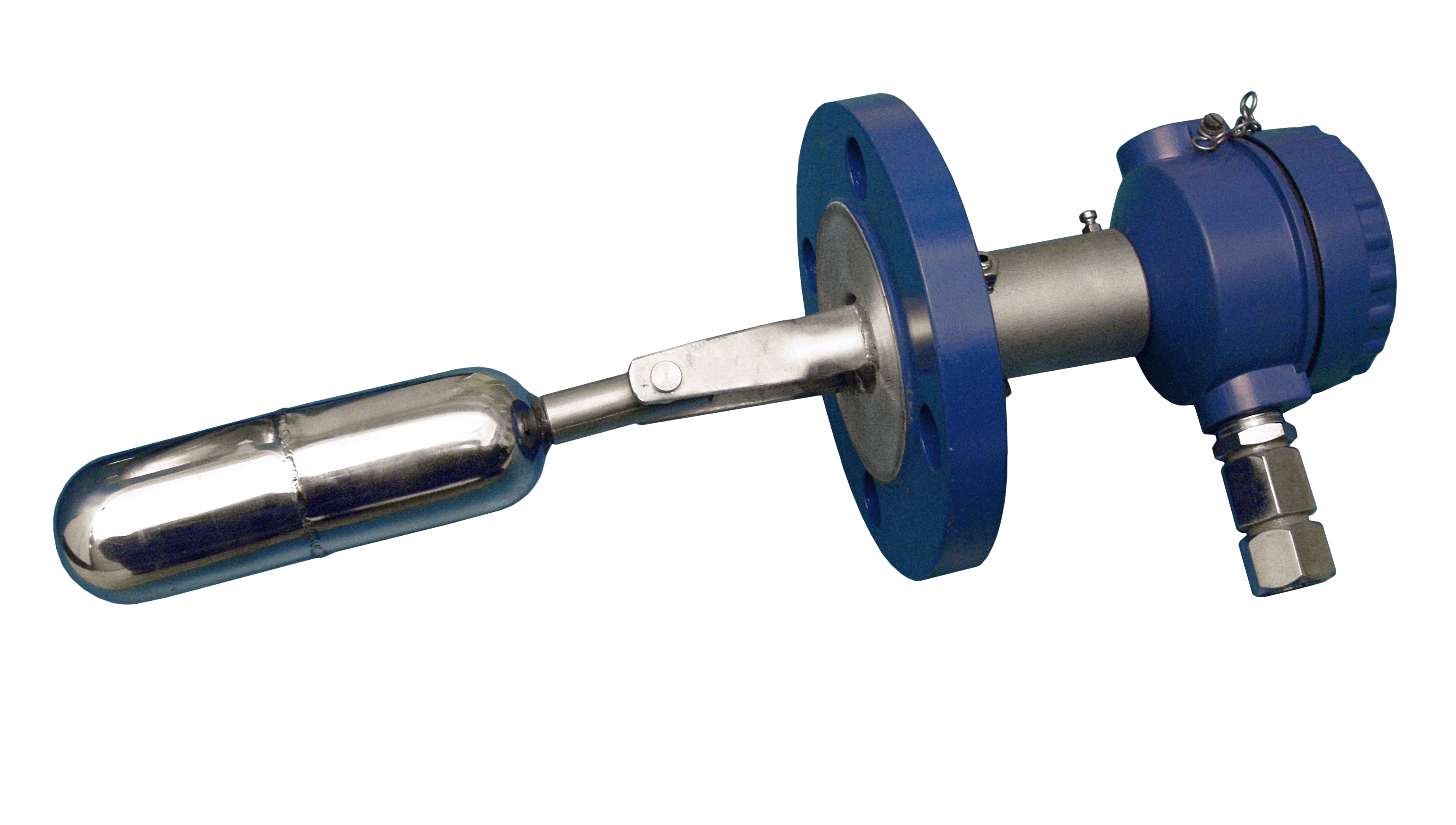

Magnatilt Magnetic float operated liquid

Magnatilt

Applications: Application: Liquefied Gases like LPG, C4-Cut, AHF, EO, Ethylene, Pesticides, Petrochemicals, Acids, Water, Interface etc.

Horizontal hinged float moves with the level. The magnetic tip of the float operates an external micro switch 5A. - 240 V ac change-over contact in an enclosure Ex-proof to IS-2148 II B & weatherproof - IP 65.

Features: MOC: CS, SS, PP, PVDF

Mntg: 50NB to 150 NB Operational Pressure: Abs. Vacuum to 30 Bar. Operational Temperature:0 degree to 120 degrees celcius.

Version:

  • Direct Internal

  • External Chamber
